Ducted Indoor Unit

40MBDQ

  • 40MBDQ

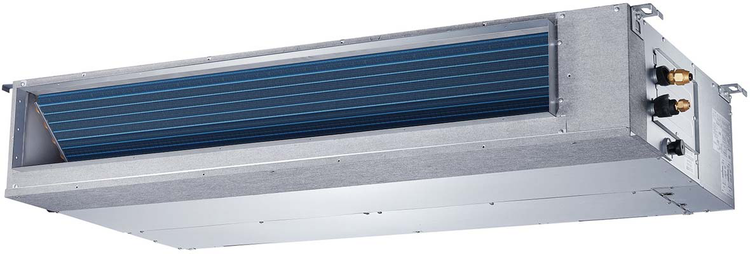

The 40MBDQ Ducted indoor unit can be installed where you want: in the ceiling, below the floor or vertically in the wall. No matter where you place it, it works quietly and efficiently to heat and cool single or multi-zone ductless areas. Sensing the temperature at your handheld remote, it delivers air where you are via three available fan speeds. This unit is also available in a high-static model compatible with our 38MBR single zone heat pump.

TenYearPartsLogo

  • Sizes: 09 / 12 / 18 / 24 / 36 / 48 / 58
  • Available in 208/230V
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Vertical (sizes 09-48) or horizontal (all sizes) installation
  • Up to 0.64 in WG
  • Rear or bottom return
  • Outside air intake
  • External Condensate Lift Pump shipped with the unit (Sizes 09-18)
  • Built-in condensate lift pump (size 24 - 58)
  • Follow Me (senses temperature at handheld remote)
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 35 decibels1
  • Aluminum Golden Hydrophilic pre-coated fins
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
  • Quiet indoor operation, as low as 35 decibels1
  • 0.75 – 2.0 Ton
  • 208/230V
  • Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance.

1 Quietest size within each model group during low fan-speed operation

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
